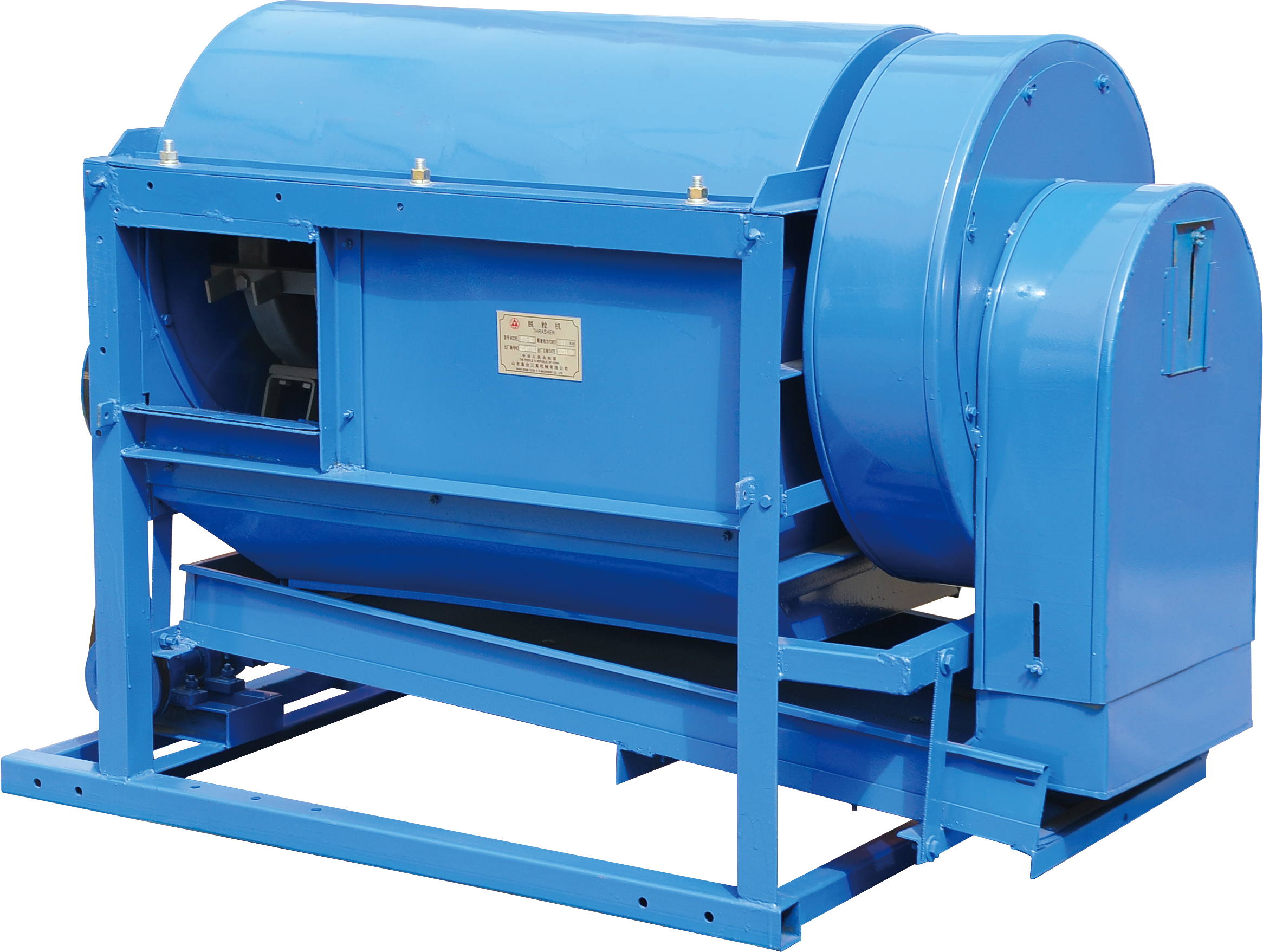

5TD Series Threshing Machine
5TD series threshing machine is multi‑functional for threshing paddy, wheat, soybean, sorghum, corn, millet and other grains. It adopts full‑feed threshing structure. Feeding hopper, threshing drum, concave screen, fan and vibrating screen work together for threshing, winnowing and screening. This machine supports motor, diesel engine or tractor PTO drive to meet different working demands.
Model5TD系列脱粒机
Product Introduction
Product Features
- Multi‑Crop Threshing – Suitable for rice, wheat, soybean, sorghum, corn, millet and other crops.
- Efficient Threshing – Full‑feed threshing system provides efficient crop separation.
- Integrated Cleaning – Combines threshing, winnowing and vibrating screening.
- Multiple Power Options – Can be driven by an electric motor, diesel engine or tractor PTO.
- Flexible Application – Suitable for different working environments and crop processing needs.
Main Technical Parameters
| Model | Drum speed | Power | Cleaning method | Screen frequency | Fan speed | Cleaning fan diameter | Drum diameter / length | Screen amplitude | Capacity | Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| 5TD-90 | 1040-1100 r/min | ≥7.5 kW motor or 12-15 HP diesel engine | Vibrating screen + enlarged fan | 340 | 1040-1100 r/min | D=480 mm | D=520 mm (or 500 mm); L=900 mm | 30 mm | Paddy/wheat 800-1200 kg/h; soybean 400-600 kg/h | 260 kg (excluding chassis, tires and diesel engine) |
| 5TD-125 | 1050 r/min (beans 550-620 r/min) | 22 HP diesel engine (or 11-13 kW motor) | -- | 340 | 2500 r/min (dual fans) | -- | -- | 40 mm | Paddy/wheat 1000-1500 kg/h; soybean 600-800 kg/h (custom) | 420 kg (excluding walking chassis, tires and diesel engine) |
