Paddy Cleaning&Destoning Equipment

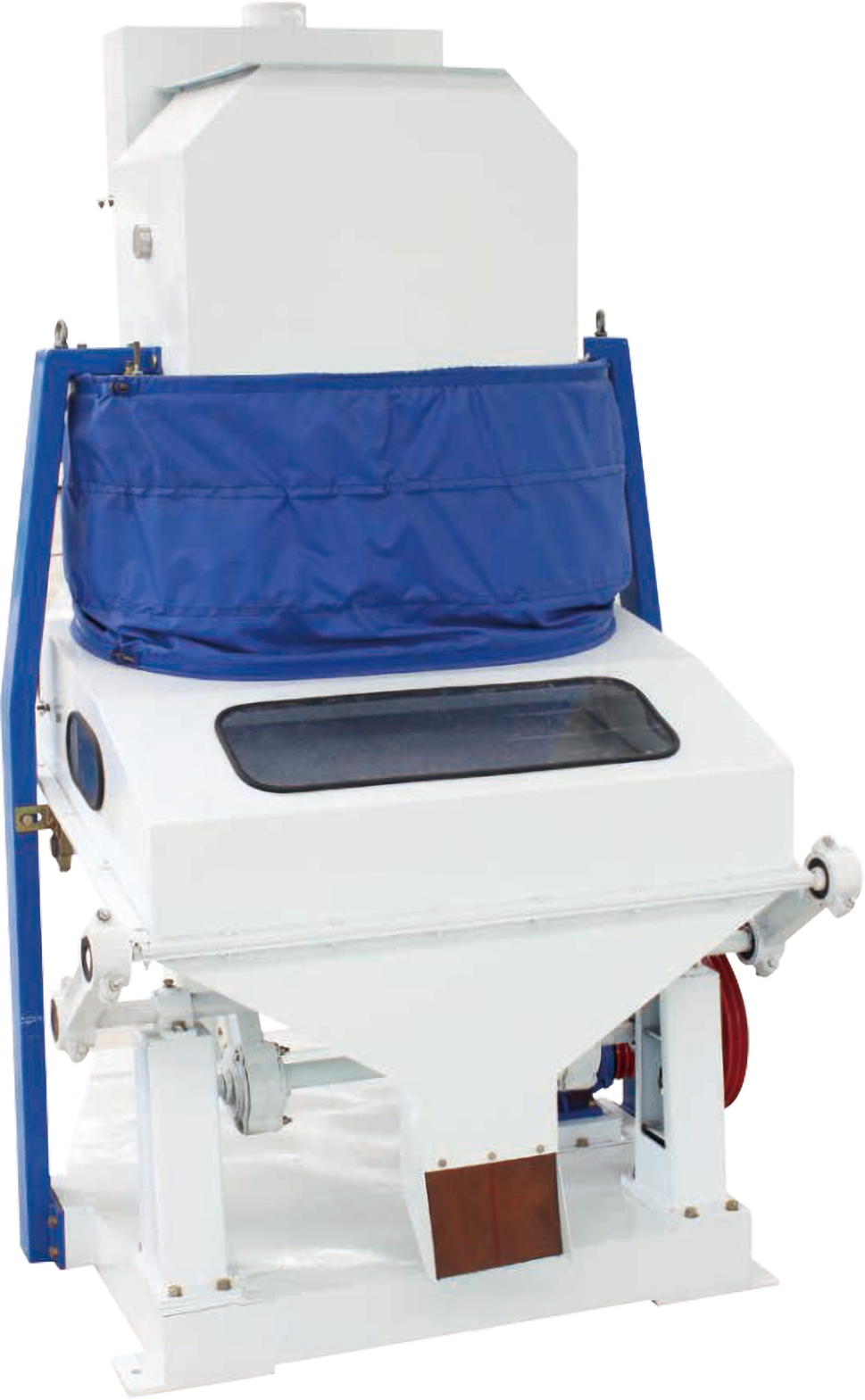

TQSX Series Suction Type Special Gravity Destoner
TQSX series suction type specific gravity destoner is used to separate impurities which are very similar in size or shape to wheat and paddy but differ in weight.
ModelTQSX系列吸式比重去石机
Product Introduction
Product Features
- Efficient Stone Removal: Removes stones and heavy impurities similar in size and shape to grains but different in weight.
- Built-in Fan: No additional air system is required.
- Compact & Space-saving: Compact structure with a small footprint.
- Low Power & High Efficiency: Low operating power consumption with effective stone removal.
Main Technical Parameters
| Model | Capacity(t/h) | Suction air(t/h) | Resistance(t/h) | Power(kW) | Weight(kg) | Dimensions (L×W×H) |
|---|---|---|---|---|---|---|
| TQSX80 | 3.0-5.0 t/h | 3300 t/h | 50 t/h | 0.75 kW | 250 kg | 1514×974×1809 mm |
| TQSX100 | 5.0-6.0 t/h | 4000 t/h | 50 t/h | 0.75 kW | 300 kg | 1514×1124×1809 mm |
| TQSX125 | 6.0-7.0 t/h | 5000 t/h | 50 t/h | 1.1 kW | 350 kg | 1614×1374×1809 mm |
| TQSX168 | 7.0-9.0 t/h | 8500 t/h | 50 t/h | 1.5 kW | 400 kg | 1800×1600×2100 mm |
